Measure the absorbance and optical density (OD) of your solutions with the precision of a laboratory spectrophotometer in a portable format. The IndiGo UV/Vis in transmission digitizes your quantitative assays and calibration curves on standard cuvettes.
Metrology basics: from transmission to concentration
In absorption spectrophotometry, a light beam of incident intensity I_0 passes through a cuvette containing the liquid sample over a defined optical path l. The transmitted intensity I gives the transmittance T = I / I_0, and then the absorbance (or optical density, OD):
Linearity & dynamic range
The IndiGo UV/Vis in transmission provides linear measurements up to 2 absorbance (OD) units. You can plot calibration lines directly to quantify the concentration of a solute without saturating the sensor.
Flat-spectrum polychromatic source
Unlike slow and fragile scanning monochromator spectrophotometers, the IndiGo illuminates the sample with a stable source and captures the entire spectrum instantly (380 to 720 nm, or extended UV) in a single flash of a few milliseconds.
IndiGo UV/Vis in transmission: the portable chemical analysis bench
Designed for chemists, biologists and process technicians, the compact IndiGo spectrophotometer integrates an optomechanical cuvette holder optimized for standard cuvettes with a 10 mm path length (glass, PMMA, polystyrene or quartz).
Visible & UV spectrophotometry
- Nanometer-level resolution: optical precision on the order of a nanometer to identify narrow absorption bands without distortion.
- Standard 10 mm cuvette holder: compatible with all closed laboratory cuvettes for aqueous solutions, organic solvents or dilute acids.
- Extended UV option (e.g. OD280): deuterium / UV-LED source configuration for protein and total polyphenol assays.
Sequential multi-OD measurements
- Multi-wavelength monitoring: simultaneous programming of several optical density wavelengths (e.g. OD420, OD520, OD600, OD620).
- Real-time chemical kinetics: continuous recording of OD over time to study reaction rates.

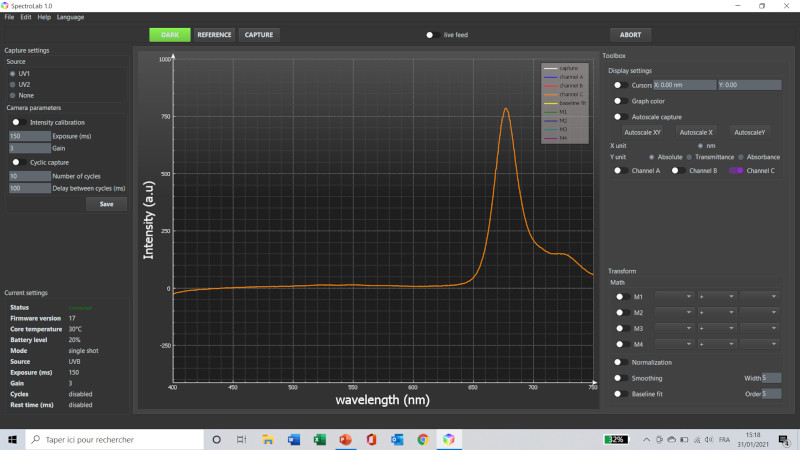

- Automatic dark and blank: instant subtraction of the solvent (blank) in the SpectroLab application.
Record your standards of known concentration: SpectroLab automatically computes the linear regression (R^2) and displays the concentration of your unknown samples directly in physical units (g/L, mol/L, ppm).
Key applications in liquids
Biotechnology & cell density (OD600)
Monitoring of bacterial growth and biomass in fermenters or microbiology laboratories by measuring turbidity and scattering at 600 nm, with no warm-up time.
Colorimetric assays of reagents & water
Quantification of chemical traces (nitrates, phosphates, heavy metals, ammonium) through absorbance development according to standardized protocols with liquid reagents.
Biochemistry & proteins (OD280)
Fast assessment of the purity and concentration of aromatic amino acids (tyrosine, tryptophan) and purified proteins in a quartz cuvette.
Analytical chemistry & higher education
Experimental verification of the Beer-Lambert law, spectrophotometric assays in lab classes and quality control of chemical synthesis baths.
Need a specific pass / fail assay routine or automated OD measurement?
Are you deploying liquid analysis protocols in the field or on a test bench? GoyaLab develops your custom software application (Windows, Android, iOS): automatic concentration calculation, OD tolerance checks with a binary pass / fail verdict, and direct export of test reports to your LIMS.
Spectrophotometer configurations for liquid analysis
| IndiGo configuration | Optical technology | Range / path | Key assays & metrology |
|---|---|---|---|
| IndiGo Visible in transmission | Polychromatic absorption spectrophotometry | 380 – 720 nm (10 mm cuvette) | Absorbance measurement (0 to 3 OD), Beer-Lambert law, assays of colored solutions, chemical kinetics and OD600 cell growth monitoring. |
| IndiGo extended UV in transmission | UV / visible absorption with a stable source | 250 – 720 nm (10 mm quartz cuvette) | UV absorption quantification: OD280 (proteins), phenolic compounds and solutes absorbing in the mid/near UV. |
| IndiGo fiber + immersion probe (SMA 905) | Remote in-situ transmission, no cuvette | 380 – 900 nm | In-line measurement in beakers, reactors or process tanks: real-time concentration control without sampling. |
