Benchtop 785nm Raman spectrometer: Fluorescence-free molecular analysis and high modularity

The GoyaLab 785 nm Raman Spectrometer is a compact and modular laboratory instrument specifically designed for the spectral analysis of organic compounds, polymers, resins, and complex matrices. By utilizing a near-infrared excitation wavelength at 785 nm, it effectively eliminates parasitic background fluorescence that typically obscures Raman signals on real-world industrial samples.

Offered with a choice of a single-mode (100 mW) laser source for high spatial resolution micro-spectroscopy or a multimode (300 mW) laser for macroscopic bulk sampling of powders and liquids. The instrument is built around a micrometric “3D-Stand” (Class 1 safety), a dedicated vial holder, or a remote interlocked fiber probe.

Optical Architecture Highlights & Laser Options

Targeted 785 nm laser excitation tailored to your field:
- 100 mW Single-mode laser: Highly coherent and narrow beam, preferred for micro-spectroscopy on the 3D-Stand with 40x and 60x objectives, analyzing micrometric inclusions, local stress, and single fibers.
- 300 mW Multimode laser: Expanded sampling spot maximizing photon collection volume, ideal for heterogeneous powders, granules, turbid liquids, and through-packaging/vial analysis without thermal degradation risks.
- Fine power adjustment: Dynamic control adjustable from 10% to 100% in 1% steps via SpectroLab software.
Radical fluorescence suppression: Selecting 785 nm drastically minimizes the electronic transitions responsible for fluorescent emission, ensuring usable spectra even on raw, colored, or additive-rich matrices.
Raman shift range 150 – 3,200 cm^-1: Comprehensive analytical window covering the fingerprint region (150 to 1,800 cm^-1) and the C-H, O-H, and N-H stretching region (2,800 to 3,200 cm^-1). (Customizable range based on requirements).
Modular entrance slit & fine resolution: Optical resolution of 10 cm^-1 with the standard 25 µm slit, customizable with a 15 µm slit for enhanced spectral separation.
High-definition optical sensor & water-cooled option:
- Standard: High-resolution color Sony IMX676 2D CMOS sensor with low background noise.
- Research / Low-Signal Option: Scientific water-cooled sCMOS sensor, dedicated to prolonged exposure times for extracting ultra-weak bands.
Certified laser safety:
- Class 1 (total eye safety): Direct use in shared laboratory environments without safety goggles, thanks to the hardware interlock on the enclosed “3D-Stand” and the vial holder.
- Class 3B: Open configuration without 3D-Stand for optical benches or custom integration.
Polystyrene reference auto-calibration: Immediate validation and calibration procedure in SpectroLab using the certified bands of Polystyrene (included with the instrument).

Industrial applications & Use cases

By neutralizing parasitic fluorescence, the 785 nm Raman is the ideal tool for identifying synthetic, organic, and industrial compounds:

Fine chemistry, resins & industrial polymers:
- Filled plastics identification: Rapid characterization of colored commercial polymers or those containing additives, plasticizers, and stabilizers.
- Cross-linking monitoring: Monomer conversion rate control during epoxy, polyurethane, or acrylic polymerizations.
- Solvents & reagents: Purity control and incoming inspection without opening glass vials.
Security, forensics & customs:
- Narcotics and illicit substances: Non-destructive detection and authentication of suspicious powders, synthetic drugs, and cutting agents through transparent plastic bags or glass vials.
- Hazardous materials & explosives: Safe identification of chemical precursors and energetic powders without direct contact.
Food & beverage, oils & complex liquids:
- Vegetable oil authentication: Adulteration detection (e.g., extra-virgin olive oil cut with seed oils), fatty acid unsaturation profiling.
- Beverages, alcohols, and syrups: Sugar quantification, ethanol dosing, and counterfeit spirit identification.
Higher education & academic research:
- Practical teaching benches in molecular spectroscopy, organic chemistry, and materials science.
- Total Class 1 safety and operational robustness suited for intensive student use.

Optical & Electronic specifications

Parameter	Specification
Excitation laser wavelength	785 nm (wavelength stabilized)
Laser configuration options	100 mW Single-Mode or 300 mW Multimode
Laser power adjustment	Adjustable from 10% to 100% in 1% steps
Raman Shift spectral range	150 – 3,200 cm^-1 (customizable upon request)
Edge cut-off filter	150 cm^-1
Spectral resolution (FWHM)	10 cm^-1 (standard 25 µm slit) \| Optional 15 µm slit
Numerical Aperture (NA)	0.2
Standard optical sensor	Color Sony 2D CMOS (IMX676)
Optional optical sensor	Scientific water-cooled sCMOS

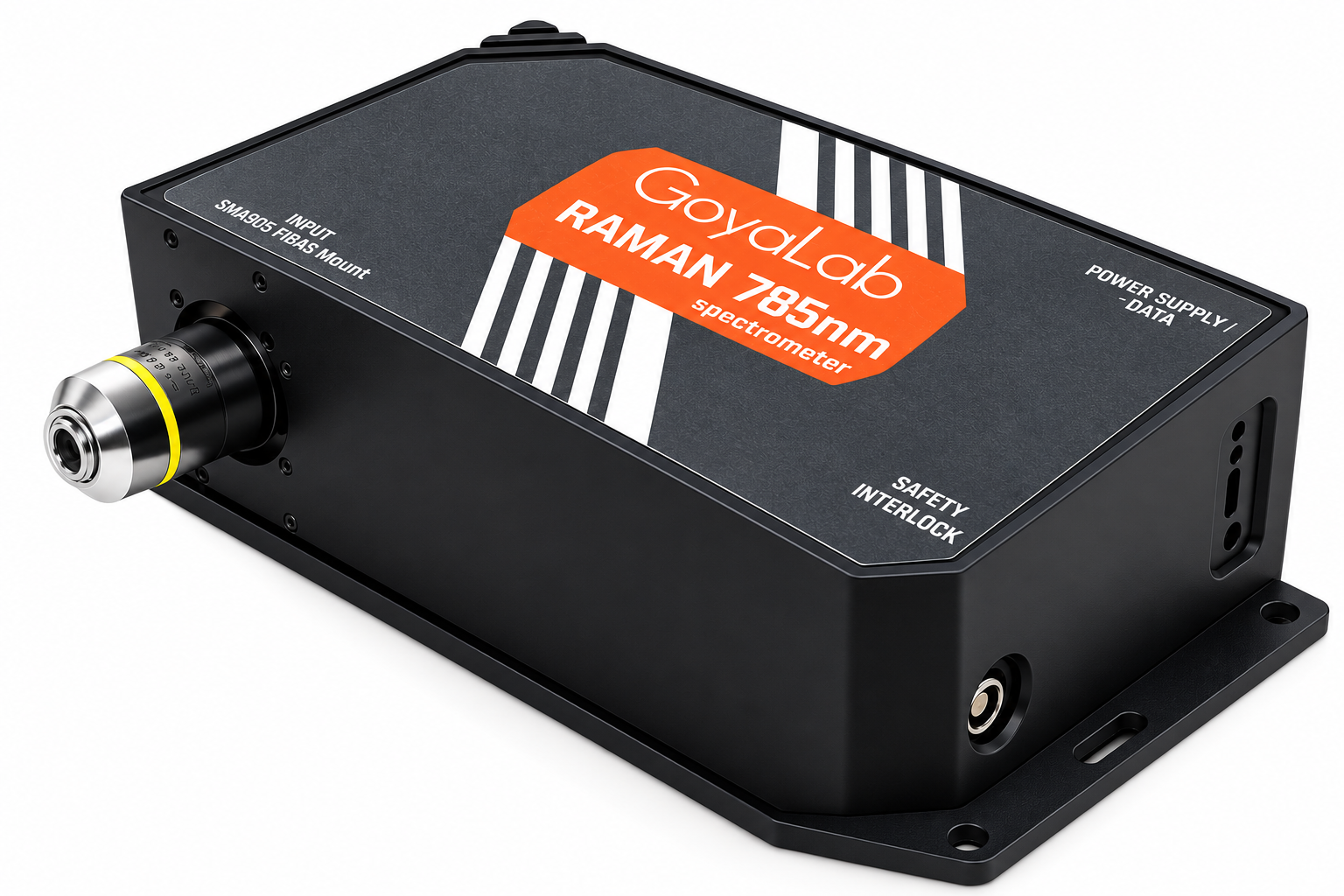

Standard objective	MPLAN 10x (interchangeable to 40x and 60x)
Targeting & imaging system	Beam splitter slider with optional color targeting camera
“3D-Stand” base	Micrometric X-Y movement, millimetric and micrometric Z adjustment
Vial holder module	Standard borosilicate vials Ø 10 mm inner diameter with Class 1 safety
Laser safety classification	Class 1 (on 3D-Stand or vial holder) / Class 3B (without 3D-Stand/vial holder)
Connectivity	High-Speed USB & hardware interlock loop

Sampling modularity & Accessories

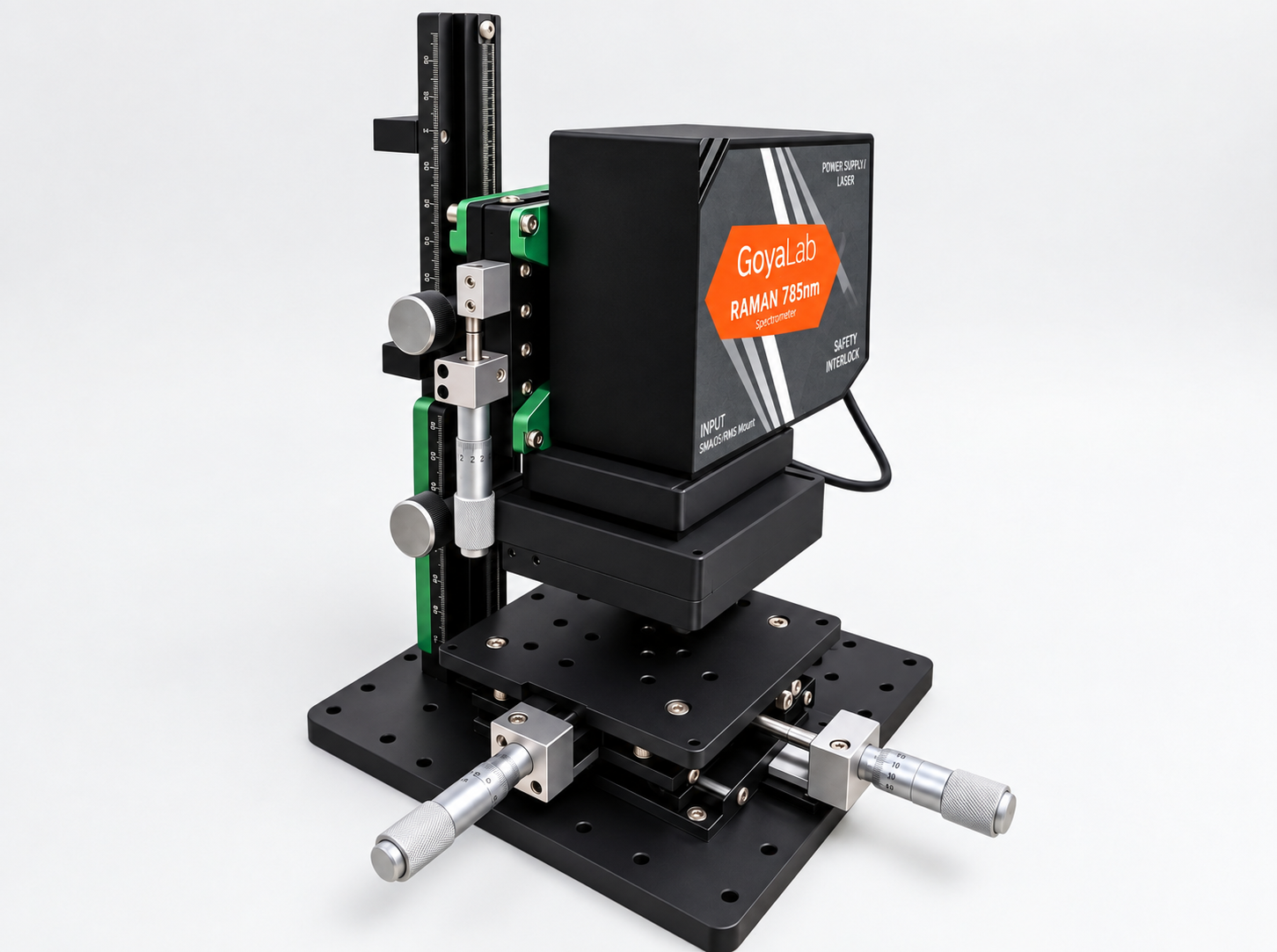

High-precision “3D-Stand” analytical stand: Micrometric X-Y control for scanning solid samples and dual Z control (rapid approach + fine micrometric focusing).
Interchangeable microscopy objectives:
- 10x MPLAN objective mounted as standard for versatile use.
- Optional 40x and 60x objectives to focus the laser spot down to ~1 µm (in single-mode configuration) to target fibers, multilayers, or micro-crystals.
Optical slider & contextual targeting camera: Retractable beam splitter system with a dedicated digital camera to visually monitor the surface and the laser impact point in SpectroLab.
Secure vial holder compartment: Adapter designed for Ø 10 mm inner diameter borosilicate glass vials, with automatic beam shut-off upon opening (Class 1).
Remote fiber Raman probe: In situ measurement inside reactors or over bulky materials, equipped with a safety hardware interlock loop.

SpectroLab data processing & Spectral libraries

SpectroLab Software (Included, free, unlimited license):
- Comprehensive suite of mathematical pre-processing: Cosmic ray removal (despiking), noise filtering (Savitzky-Golay, denoising), and automatic baseline subtraction (AsPLS asymmetric algorithms, polynomial correction).
- Auto-calibration procedure: Immediate spectral scale adjustment with one click on the Polystyrene reference spectrum.
- Open data formats: Universal exports (.spc, .txt, .xlsx, .csv).
ST Japan & KnowItAll® database compatibility: Automatic spectral similarity search for the rapid identification of unknown polymers, narcotics, solvents, and organic compounds.
Expert / Capture Chemometrics Suite (Option): Multivariate statistical classification (PCA) for segregating raw material batches or detecting formulation anomalies.
