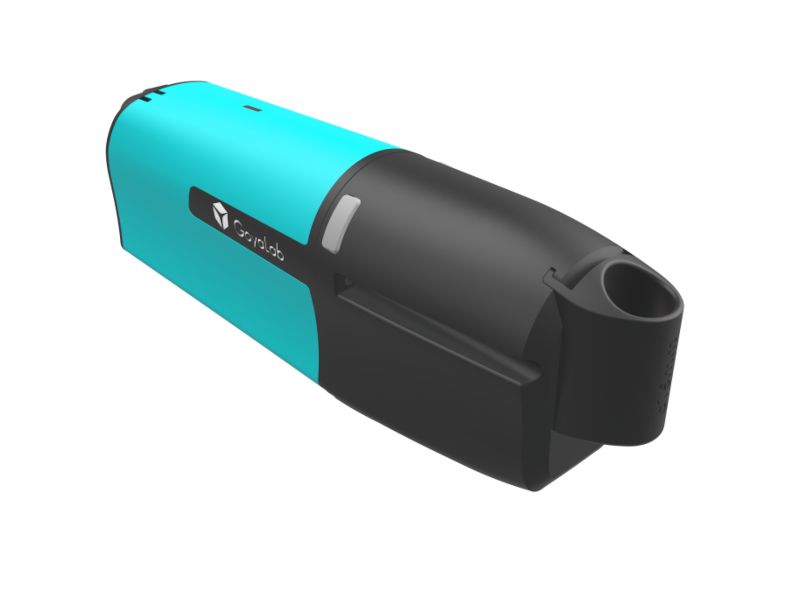

IndiGo Raman 532nm: Lab-Grade Raman in a Portable Spectrometer
The IndiGo Raman 532nm is a strikingly compact handheld Raman spectrometer, designed to bring high-precision molecular analysis directly to the field, the greenhouse or the production line. Fitted as standard with an ultra-stable 532 nm excitation laser and high-efficiency collection optics, this portable Raman spectrometer combines the sensitivity of a benchtop system with complete mobility. It is the tool of choice for characterizing nanomaterials, certifying precious minerals or identifying chemical substances in seconds.
Why is 532 nm excitation the reference?
- Ultra-intense Raman signal: since Raman scattering scales with the inverse fourth power of the wavelength, a 532 nm laser generates a signal nearly 5 times stronger than a 785 nm laser, enabling ultra-fast measurements.
- Resonance of carbon structures: it is the wavelength of choice for analyzing carbon-carbon bonds.
- Contactless and non-destructive: analyze your samples directly through vials and plastic bags, or remotely with our fiber probe.
Key applications: precision molecular analysis
1. 🌌 Nanomaterial characterization: carbon nanotube (CNT) defects
The IndiGo Raman 532nm is an essential instrument for nanotechnology laboratories and for quality control of graphene, nanotubes and doped polymers:
- Defect level assessment (D/G ratio): 532 nm Raman excites both the G band (surface vibration mode of graphitic carbon around 1580 cm⁻¹) and the D band (defect band around 1350 cm⁻¹). The instant D/G intensity ratio precisely quantifies the purity, functionalization or structural defects of carbon nanotubes (single-wall or multi-wall).
- Radial breathing mode (RBM) analysis: in the low-frequency region (100 to 350 cm⁻¹), the IndiGo directly determines the diameter of single-wall carbon nanotubes.
- Graphene control: immediate identification of the number of graphene layers by analyzing the 2D band (around 2700 cm⁻¹).
💎 2. Advanced gemology & gemstone identification
For certification laboratories and art experts, 532 nm Raman ideally complements reflectance measurements with an unambiguous structural (phonon) signature:
- Diamond screening (natural vs. HPHT/CVD laboratory-grown): instant identification of the pure diamond line at 1332 cm⁻¹, and detection of the luminescence peaks of nitrogen-vacancy (NV) or silicon-vacancy (SiV) defect centers created by synthetic growth methods.
- Gem authentication & polymorphism: immediate distinction between minerals with the same chemical composition but different structures (e.g. rutile vs. anatase, or the various forms of silica such as quartz, chalcedony and opal).
- Identification of treatments and inclusions: detection of resins, oils or polymers injected to hide fractures in emeralds or rubies.
🧪 3. Pharmaceuticals, polymorphism & chemical synthesis
The high resolution of the IndiGo Raman 532nm secures chemical production steps:
- Pharmaceutical polymorphism control: two crystalline forms of the same active pharmaceutical ingredient (API) have different dissolution properties. Raman instantly identifies the correct amorphous or crystalline form directly in the vial.
- Real-time reaction monitoring: track the disappearance of reactants or the appearance of products (such as epoxide ring opening or monomer polymerization).
🛢️ 4. Petrochemicals & biofuels: blend monitoring
- Fuel analysis: ultra-fast quantification of aromatic hydrocarbons, ethanol content in gasoline or biodiesel (FAME) content in diesel, without heavy sampling.
💡 OEM integration & custom Raman probes
Are you integrating Raman on a robotic arm, a sorting line or a chemical reactor? GoyaLab designs compact Raman heads, high-performance Rayleigh rejection filters (edge/notch filters) and suitable laser sources in an OEM version.
👉 Contact our engineering office for your custom Raman project
A software ecosystem built for spectral identification
The IndiGo Raman 532nm is controlled by our software, which turns complex molecular spectra into clear answers:
- SpectroLab (Windows): controls laser power and integration time, applies baseline corrections (essential to remove background fluorescence) and compares your spectra with reference databases.
- Android app: connected over Bluetooth, it gives you complete freedom of movement in the field for fast point-and-shoot scans with GPS coordinates.
- “SpectroLink” Python library: the ultimate tool for chemometric data processing.
📦 Safety and delivery information: the IndiGo Raman 532nm integrates a class 3B or 4 laser (depending on configuration). It is delivered with safety glasses suited to the 532 nm wavelength and wavenumber calibration standards (e.g. silicon at 520.7 cm⁻¹).
✉️ To configure the right laser power for fragile samples or to get a quote, contact our team of experts.
🔽 Downloads: Download the IndiGo Raman 532nm datasheet
Interested in this product ? Request a quote
